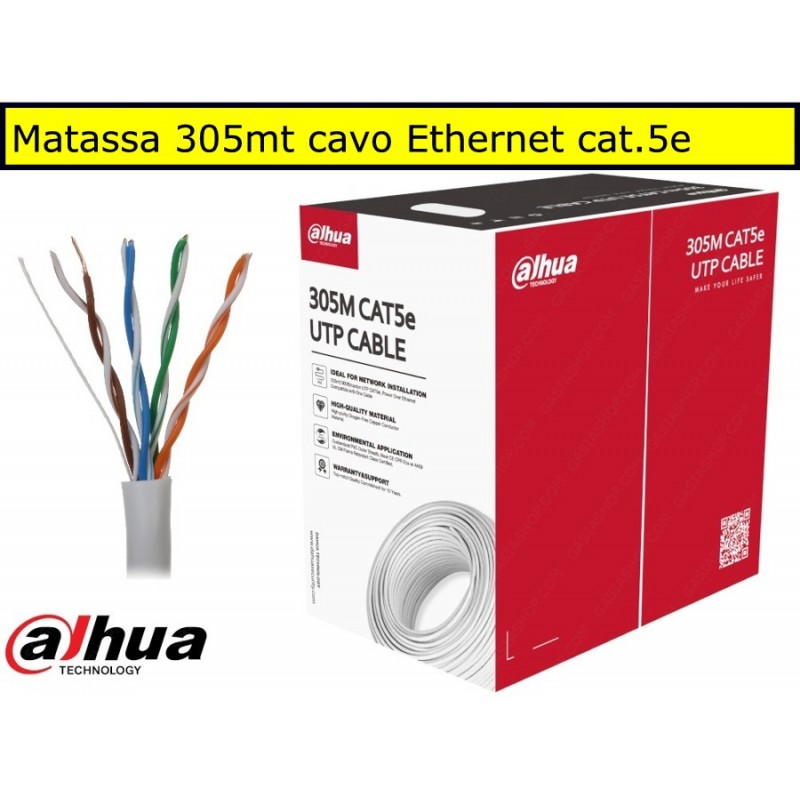

> Matassa 305 mt.Cavo di rete Ethernet UTP Cat 5e 4x2 AWG 24 Lan RJ45 Dahua 100% Rame
Nuovo Matassa 305 mt.Cavo di rete Ethernet UTP Cat 5e 4x2 AWG 24 Lan RJ45 Dahua 100% Rame Visualizza ingrandito

Matassa 305 mt.Cavo di rete Ethernet UTP Cat 5e 4x2 AWG 24 Lan RJ45 Dahua 100% Rame

3293

Prodotto nuovo

180,00 € tasse incluse

Dettagli

Matassa 303 mt.Cavo di rete Ethernet UTP Cat 5e 4x2 AWG 24 Lan RJ45 Dahua 100% Rame



UTP CAT5E Cable

>305 m (1000 ft)/carton UTP CAT5e, power over Ethernet, compatible with one cable

> High-purity oxygen-free copper conductor

> Customized PVC outer sheath; CE CPR Eca flame retardant class certified







Material Oxygen free copper (99.97% purity)
Diameter 0.45 mm ± 0.01 mm
Insulation
Material HDPE
Min. Average Thickness 0.18 mm
Diameter 0.81mm±0.1mm
Color (4 Pairs) Blue, white/blue; orange, white/orange; green, white/green; brown, white/brown
Rip Cord
Material Polyester
Specification 500D
Sheath
Material PVC
Min. Average Thickness 0.5 mm
Diameter 4.7 mm ± 0.3 mm
Color White
Electrical
Max. DC Resistance of a Single Conductor 12Ω/100 m
Min. Insulation Resistance 5000MΩ·km
Max. DC Resistance Unbalance 2% (pair intra), 4% (pairs inter)
Dielectric Strength No breakdown with 1KV DC for 1 min
Transmission
Characteristic Impedance 100 ± 15Ω
Near End Cross Talk ≥35.30 dB/100 m@100 MHz
Max. Attenuation 24.2 dB/100 m@100 MHz
Return Loss ≥20.1 dB/100 m@100 MHz
Mechanical
Tensile Strength Sheath≥13.5 MPa, insulation≥16 MPa
Elongation at Break Sheath≥150%, insulation≥300%
Installation Bending Radius >8 times of outer cable diameter
Conductor Elongation at Break ≥10%
Environmental
Shrinkage of Insulation ≤5%
Color Migration Resistance of Insulation No migration
Sheath Tensile Strength and Elongation at Break after Aging ≥12.5 MPa, ≥100%
Low Temperature Bending Test No cracking after the test
Heat Shock Test No cracking after the test
Operating Temperature –20°C to +60°C
Installation Temperature 0°C to +50°C
Storage Temperature and Humidity –10°C to +40°C, <60% (RH)
Security
Vertical Fire Propagation Test Comply with IEC 60332-1-2
Packaging
Cable Length 305.0 m ± 1.5 m
Net Weight ≥7.0 kg
Compliance
Executive Standards Q/DXJ 067-2019, EN50575-2014
Certification
Certification CPR Eca
